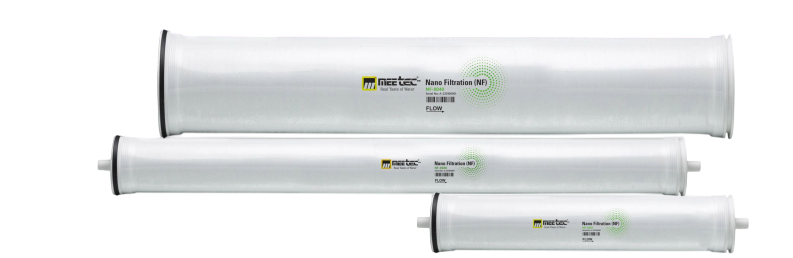

Nano Filtration Membrane Is A Special And Functional Semi-permeable Membrane Which Selectively Allows Certain Lmw And Low-valention To Pass Through .its Desalination Rate Is Between 40-98%.it Can Block The Organic In The Range Of 150-500 Lmw, And It Performs Better In Desalinating Single Valence Anions Solution. Now Days, Nano Membranes Have Been Widely Used In Many Fields, Including Drinking Water, Food Processing, Pharmaceuticals And Biology Industry.
| Model | Solution | Stable Rejection | Average Permeated Flow (GPD) | Active Membrane Area ft² (M²) |
|---|---|---|---|---|
| NF70-8040 | NaCl | 40~70 | 10000 | 398 (37) |
| MgSO₄ | >98 | |||
| NF70-4040 | NaCl | 40~70 | 2500 | 81 (7.5) |
| MgSO₄ | >98 | |||
| NF70-4021 | NaCl | 40~70 | 1000 | 36 (3.3) |
| MgSO₄ | >98 | |||
| NF90-8040 | NaCl | 85~95 | 8500 | 398 (37) |
| MgSO₄ | >98 | |||
| NF90-4040 | NaCl | 85~95 | 2000 | 81 (7.5) |
| MgSO₄ | >98 | |||
| NF90-4021 | NaCl | 85~95 | 800 | 36 (3.3) |
| MgSO₄ | >98 |
| Testing Pressure | 110psi (0.76MPa) |
| Temperature of Testing Solution | 25°C |
| Concentration of Testing Solution (NaCl) | 2000 PPM |
| Concentration of Testing Solution (MgSO₄) | 2000 PPM |
| pH Value of Testing Solution | 7.5 |
| Recovery Rate | 15% |
| Max. Working Pressure | 600psi (4.1MPa) |
| Max. Working Feedwater Flow | 75gpm (8040) 16gpm (4040/4021) |
| Max. Feedwater Temperature | 45°C |
| Max. Pressure Decline | 15psi (0.1MPa) |
| Residual Chlorine | <0.1ppm |
| pH Range of Feedwater | 3.0 - 10.0 |

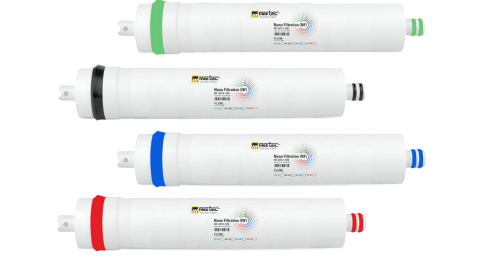

MEETEC residential nano filtration membrane has high water output and stable performance, which is specialized in removing dissolved organic carbon and softening water meanwhile. it selectively allows certain Imw and low-valent ions pass through. it can effectively remove nitrate, pesticide, herbicide, household chemicals, bacteria, viruses. meanwhile, it remains part of na+, k+ ca2+ in water, so that its output water has good test. on the other side, its output flow rate is high with low operating pressure. sometimes it doesn’t need a pump, which can effectively reduce the cost and compress size of a direct drinking system.
| Model | Average Rejection | Minimum Rejection | Average Permeated Flow (GPD) | Active Membrane Area ft² (M²) | Suitable for Tap water TDS |
|---|---|---|---|---|---|
| NF-20-2012-100 | 20-30 | 60 | 150 | 6.0 (0.56) | 250 ppm |
| NF-40-2012-100 | 40-50 | 60 | 150 | 6.0 (0.56) | 400 ppm |
| NF-60-2012-100 | 60-70 | 60 | 150 | 6.0 (0.56) | 700 ppm |
| NF-80-2012-100 | 80-85 | 60 | 150 | 6.0 (0.56) | 1300 ppm |
| Testing Pressure | 90psi (0.62MPa) |
| Temperature of Testing Solution | 25°C |
| Concentration of Testing Solution | 250ppm |
| pH Value of Testing Solution | 7.5 |
| Recovery Rate | 15% |
| Max. Working Pressure | 300psi (2.07MPa) |
| Max. Working Feedwater Flow | 2 gpm |
| Max. Feedwater Temperature | 45°C |
| Max. Pressure SDI | 5 |
| Max. Pressure Drop | 15psi (0.1MPa) |
| Residual Chlorine Decline | <0.1ppm |
| pH Range of Feedwater | 3.0 – 10.0 |

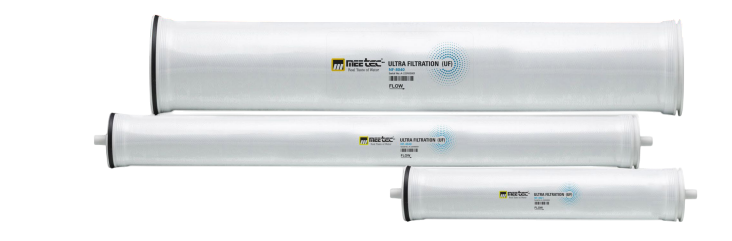

(Widest Range Of UF MWCO’s available)
(FRP Wrapping & Sanitary model)
| Product code | Membrane Material | MWCO | Application |
|---|---|---|---|
| UFPE10 | UF PES | 10,000 Da |
• Food and Dairy process applications to industrial water purification • Enzyme concentration • Gelatin concentration • Protein Concentration |
| UFPE20 | UF PES | 20,000 Da |
• Skim milk protein concentrate & isolate production • Beverage clarification • Protein Separation • Industrial water purification |
| UFPE30 | UF PES | 30,000 Da |
• Skim milk protein concentrate & isolate production • Beverage clarification • Protein Separation |
| UFPE50 | UF PES | 50,000 Da |
• Protein Separation • Beverage Clarification • Water and Process application |
| UFPE75 | UF PES | 75,000 Da |
• Water Purification • Extract Purification |
| UFPE100 | UF PES | 1,00,000 Da |
• Corn Wet Milling • Treatment of Fermentation Broth • Sugar & Sweetener Clarification |
| Max inlet Pressure | 116 PSI |
| Min outlet Pressure | 10 PSI |
| Max Differential Pressure per Elements | 18 PSI |
| Max Permeate Backpressure | 5 PSI |
| Max. Operating Temperature | 50 °C |
| Operating pH Range | 2.0 – 11.0 |
| Max. Peroxide Concentration | <3 ppm |
| Max. Chlorine Concentration | <0.1 mg/L |
