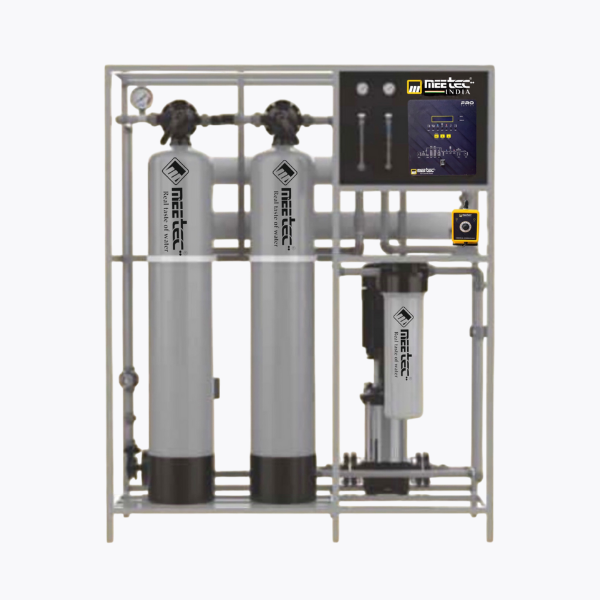

Industrial Ro System
Product Description
We are one of the most reliable and trusted suppliers of RO Plant. Offered purifiers are procured from the authentic vendors of the market who manufacture these products using premium quality components and sophisticated techniques.
These purifiers are easily purify and remove all types of impurities and harmful organisms from water and used in numerous industries like food processing, chemical, pharmaceutical, etc. Clients can avail these RO Plant from us at industry leading prices.
- Robust design
- Optimum performance
- Effective for eliminating heavy metals, excessive salts, chemicals,bacteria Viruses and other impurities
- Multistage purification system
- Power efficient
- Longer service life
Product Details
| Capacity (Litres Per Hour) | 0-200, 200-500, 500-1000, 1000-2000, 2000-3000, >3000 |
|---|---|
| Automatic Grade | Automatic, Semi-Automatic, Manual |
| Max Water Recovery Rate | 50-55%, >75% |
| Number of Filtration Passes | less than 5 |
Product Application
This commercial/industrial R.O.is used in various Industries like food processing, Pharmaceutical, institutional sectors, Apartments, Automobile Industries, Chemical Industries, Foundries, Hospitals and Clinics, Hostels and Restaurants, Humidification, Individual Houses, IT Parks, Pharmaceutical Industries, Poultry Farms, Processing Industries, School and Colleges, Textile Industries and etc. It can easily purify and remove all types of impurities and harmful organisms. These R.O. systems are designed to meet the specific requirements of the clients.
250LPH RO SYSTEM
Technical Specifications: 250LPH RO
| Model | 250 LPH RO |
|---|---|
| Feed Pump | .5 HP, Single Phase (1 pcs) |
| Skid | MS / SS |
| Multi Media Filter | 10″ X54″ Vessel (1 pcs) |
| Activate Carbon Filter | 10″ X 54″ Vessel (1 pcs) |
| Multiport Valve | 2 Sets |
| Media | Quartz Sand, Granular Carbon, Gravel. (as per need) |
| Antiscalent Dosing System | 1 pcs |
| Micron Cartridge Filter | 20″ X 2.5″ 5 Micron PP Filter (1 pcs) |
| 20″ X 2.5″ 5 Micron PP Filter (1 pcs) | 2 HP. (1 pcs) |
|---|---|
| Membrane Housing | 40*40 (1 pcs) |
| RO Membrane | 40″ X 40″ (1 pcs) |
| Instruments | Pressure Gauge (2 Pcs), Rota meters (2pcs) |
| Pressure switch | High Pressure Switch, Low Pressure Switch. (1pcs each) |
| Inter connecting pipe | UPVC / PVC / SS |
| CIP System | 100 L Tank |
| Auto / Manual Electrical Panel | Volt Meter, Ampere Meter, MCB Switch |
| Indicators | Power, Working, Low Pressure, High Pressure |
500LPH RO SYSTEM
Technical Specifications: 500LPH RO
| Specification Capacity | 500 LPH |
|---|---|
| Working Pressure | 10 – 12 Bar |
| Booster Pump | Vertical Pump |
| Membrane Material | TFC with FRP Outer Wrap |
| Membrane size x unit | 40*40×2 |
| Membrane Housing Material | SS / FRP |
| Membrane Housing | 4040×2 |
| Flow Meter | Pure water & Waste water |
| Water quality indicator | On line TDS meter |
| Electrical Controls | Main Supply On/Off, Over load Protection, High Pressure Pump : On/Off, Raw water pump, On/Off Dosing Pump, On/Off High Pressure/Low Pressure, Tripping Level Sensor |
| Feed Water Requirement | Feed water Temp: 20 -45 C, SDI < 4, Turbidity < 1 NTU, Iron < 0.1 PPM, PH : 3 – 11, Residual Chlorine : Nil, Heavy Metal : Nil |
| Pressure Gauges | 5 Nos. Sand filer, Carbon filter, MCF, Membrane feed and reject |
| Frame | M.S. Powder Coated/SS |
| Weight(kg) | 350 |
| Pre Filtration | Sand Filter & Carbon Filter |
