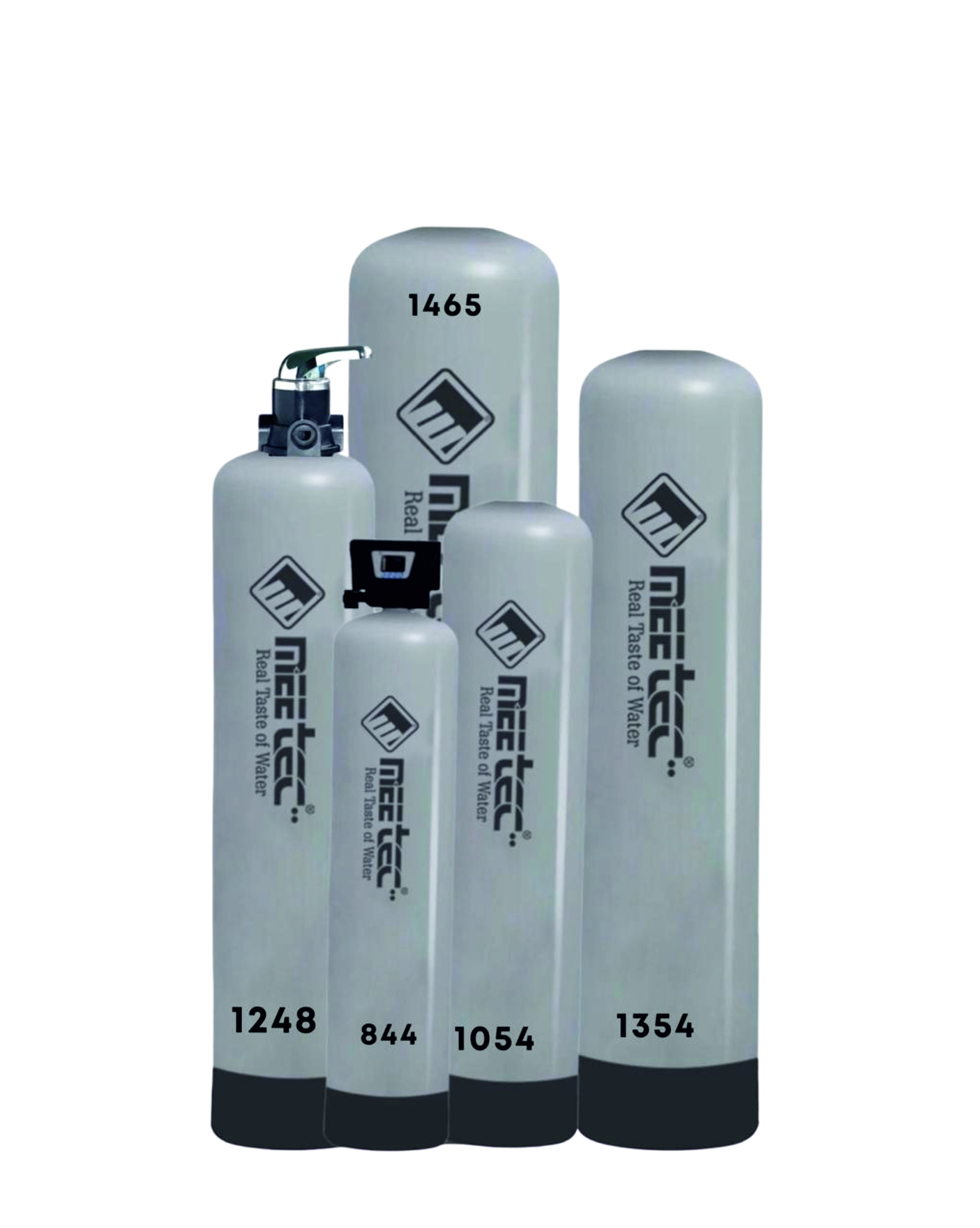

FRP VESSELS

FIBER REINFORCES PLASTIC VESSELS

  • AVAILABLE SIZE : (2.5″ TOP) 8*44, 10*54, 12*48, 13*54, 14*65, 16*65
  • OPERATIONG CONDITIONES
  • max.pressure: 10BAR(150PSI)
  • max.vacuum: 17KPA(5″HG)
  • TEMPERAURE 1-50 C(34-122 F)

WARNING!
DO NOT EXCEED OPERATING LIMITS GLASS RENIFORCED EXPOXY VESSEL WITH POLYETHYLENE INNER SHELL

HANDLING INSTRUCTION
VESSEL IS APPROVAL FOR WATER TREATMENT USE ONLY CONSULT FACTORY FOR SPECIFIC APPLICATIONS AND CONDITIONS ,DO NOT USE FOR PNEUMATIC OR HYDRO-PNEUMATIC APPLICATIONS AVOID EXPOSURE TO DIRECT SUNLIGHT

FRP PRESSURE HOUSING

Features

  • Size : 4040, 4080
  • Maximum Operating Pressure : 300 PSI (20.6 BAR)
  • Maximum Operating Temperature : 49 C (120 F)

PRESSURE GUAGE

Applications
Compressor, Filters, Regulators, Water Pumps, Paint Sprayers and other pressure related equipments. All stainless steel pressure gauge is widely used in oil industry, chemical industry, chemical fiber industry, metallurgical industry, power station and so on it can measure the pressure of all kinds of liquid medium in technologic process which has higher require for corrosion-proof and antivibration characters.

  • Range : 7kg-21kg
  • Model : Flang, Clamp, Bottom type
  • Material : 304 stainless steel

MANUAL FILTER VALVE

25NB-6000Lph

  • Manual Filter Valve
  • Installation Position :Top Face, Top Mount
  • Size Inlet/out late : 1″ F
  • Drain :1″F – Base Size 2.5″
  • T & B Strainer Size : 1″

Dosing Pump

Standard Features

  • Solid PTFP diaphragm for longer life
  • Double ball WV
  • Buliten ASV
  • User friendly knob for adjusting dosing frequency
  • CE certified
  • In 65 Certified

Scope of Supply

  • Metering pump
  • Suction/ discharge suction filter cum toot valve
  • Anti siphon valve
  • Mounting noes
  • 0 & M Manual

Technical Specifications

Closing rate (DS fig MiM 1.5.30,130 8, 10.0 Iph
Suction/Oischarge tubing 4/6 mm
mm Frequency Up to .0 spm
Elecldral 230VAC, 50 Hz
Power consumplicin M POO SPM 30 Watts

ROTA METER

Acrylic inline water flow meter liquid rotameter

Real value in general purpose Rota meters. In-line flow meter also named Acrylic tube Rota meter, acrylic tube flow meter. SS or ABS or PVC or PP or Brass Connection.

  • Tough machined acrylic meter body, highly polished to a clear finish.
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • 316 stainless steel rod guided floats.
  • Acceptable in direct sunlight applications.

INDUSTRIAL RO CONTROLLERS

DISPLAY ONLINE TDS
AUTO FLUSHING FACILITY
LEVEL/PRESSURE PROTECTION

Al 1-1 TDS 2 HP (I) RWP/ 2 HP (I) HPP
EXTRA 0.5 HP (I) DP / 0.5 HP (I) FSV
CUT OUT SIZE 141 x 171 mm

BIMAKS CHEMICAL- TURKEY

MAKS 400P-PRODUCT BENEFITS

  • Highly Effective Antiscalant Across A Broad Spectrum Of Waters.
  • Minimizes Scaling And Reduces The Frequency Of Membrane Cleaning.
  • Replaces The Need For Acid Addition. Low Dose Rate- A Cost Effective Application.
  • Low Dose Rate- A Cost Effective Application.
  • Compatible With All Membrane Types.
  • Enables Systems To Work At Enhanced Rates Of Recovery

PRE- MEMBRANE CHEMICALS

  • Coagulation (particle Growth) And Flocculation(precipitating Agents).
  • Reverse Osmosis Chemicals Designed For Purifying The Iron And Other Hydrocarbons In Microfiltration (mf) And Ultrafiltration (uf) Systems.
  • Reverse Osmosis Chemicals Designed For Cleaning The Iron And Calcium Accumulations In Microfiltration (mf) And Ultrafiltration (uf) Systems.
